Oct 26, 2020

Temporal.io workflow with Openfaas functions

Simple setup to test the recently released workflow engine Temporal (from Uber’s Cadence creators) with Openfaas serverless framework in a local k3d kubernetes cluster.

Openfaas is an awesome serverless framework project to spin up functions and api-services quickly in a variety of programing languajes focused (but not limited) to one-shot functions.

Temporal allows for complex workflows hiding most of the complexity behind building scalable distributed applications (from their website).

Install Arkade and required packages

Required packages are easy to install with arkade from Alex Ellis, the creator and founder of Openfaas:


 curl -sLS https://dl.get-arkade.dev | sudo sh

 arkade get faas-cli
 arkade get k3d

 export PATH=$PATH:$HOME/.arkade/bin/

Create k8s dev cluster

Set up a kubernetes locally from k3d with a traefik load balancer:


 k3d cluster create openfaas-temporalio --agents 2 --api-port 6443 --port "8080:80@loadbalancer"

 export KUBECONFIG=$(k3d kubeconfig write openfaas-temporalio)

 kubectl cluster-info
 kubectl get nodes

Install Openfaas

Launch openfaas in k3d with arkade:


 arkade install openfaas --basic-auth=false --set=serviceType=ClusterIP --set=ingress.enabled=true --set=ingress.annotations."kubernetes\.io/ingress\.class"=traefik

Default ingress hostname is ‘gateway.openfaas.local’

Install Temporal

https://github.com/temporalio/helm-charts#minimal-installation-with-required-dependencies-only

This is the minimal stack to use temporal (without metrics or Elastic Search):


 git clone https://github.com/temporalio/helm-charts

 cd helm-charts

 helm dependencies update

 # note: there is a pending PR in this repo for the ingress indentation
 helm upgrade --install \
     --set server.replicaCount=1 \
     --set cassandra.config.cluster_size=1 \
     --set prometheus.enabled=false \
     --set grafana.enabled=false \
     --set elasticsearch.enabled=false \
     --set kafka.enabled=false \
     --set web.ingress.enabled=true \
     --set web.ingress.annotations."kubernetes\.io/ingress\.class"=traefik \
     --set web.ingress.hosts[0]=dashboard.temporal.local \
     temporaltest . --timeout 15m

Add ingress to /etc/hosts

Instead of using port-forward to access applications i will add the k3d traefik ingress rules to /etc/hosts with this snippet (requires jq to parse json):


 kubectl get ingress --all-namespaces -o json | jq -r ' "\(.items[].status.loadBalancer.ingress[].ip) \(.items[].spec.rules[].host)"' 2>/dev/null | uniq | sudo tee -a /etc/hosts

Check Openfaas

Test openfaas is working with a sample function from the store:


 export OPENFAAS_URL=http://gateway.openfaas.local

 faas-cli store deploy Figlet
 faas-cli list
 echo "test openfaas" | faas-cli invoke figlet
 # expected output
 #  _            _                             __
 # | |_ ___  ___| |_    ___  _ __   ___ _ __  / _| __ _  __ _ ___
 # | __/ _ \/ __| __|  / _ \| '_ \ / _ \ '_ \| |_ / _` |/ _` / __|
 # | ||  __/\__ \ |_  | (_) | |_) |  __/ | | |  _| (_| | (_| \__ \
 #  \__\___||___/\__|  \___/| .__/ \___|_| |_|_|  \__,_|\__,_|___/
 #                          |_|

Check Temporal

There is a lot of samples in https://github.com/temporalio/samples-go to show the capabilities of Temporal.

Running the helloworld sample from the temporal docs:

Create the default temporal namespace with the integrated CLI


 kubectl --namespace=default get pods -l "app.kubernetes.io/instance=temporaltest"
 kubectl exec -it services/temporaltest-admintools /bin/bash
 tctl namespace register default

Create the worker for the helloworld workflow


 # this port-forward allows to use the samples directly from the repo (without edit the client.Options values)
 kubectl port-forward services/temporaltest-frontend-headless 7233:7233 &
 git clone https://github.com/temporalio/samples-go.git
 cd samples-go
 go run helloworld/worker/main.go
 # [expected output]
 # 2020/10/26 19:16:13 INFO  No logger configured for temporal client. Created default one.
 # 2020/10/26 19:16:13 INFO  Started Worker Namespace default TaskQueue hello-world WorkerID 10709@ws-steran@

Another shell to execute the workflow activity


 cd /path/to/samples-go
 go run helloworld/starter/main.go
 # [expected output]
 # 2020/10/26 19:17:08 INFO  No logger configured for temporal client. Created default one.
 # 2020/10/26 19:17:08 Started workflow WorkflowID hello_world_workflowID RunID 2cab124b-0590-4072-b5d3-8b81763c0efc
 # 2020/10/26 19:17:08 Workflow result: Hello Temporal!

Finally in the first shell close the worker and the port-forward


 ^C     # ctrl+c close worker
 fg 1   # get background task
 ^C     # ctrl+c close kubectl forward

Hello world temporal sample with openfaas function

For testing purposes the openfaas function will:

Register the workflow worker and activity at launch
Starts a http server
Expose a http endpoint to execute the workflow activity

Create a new function with the golang-middleware template from store. Golang and java are the two sdks available for temporal at this time:


 faas template store pull golang-middleware

 faas-cli new --lang golang-middleware temporalio-helloworld --prefix=kammin --gateway=gateway.openfaas.local

Add a goroutine to launch the worker in the main function on the template:


// template/golang-middleware/main.go
func main() {
	readTimeout := parseIntOrDurationValue(os.Getenv("read_timeout"), defaultTimeout)
	writeTimeout := parseIntOrDurationValue(os.Getenv("write_timeout"), defaultTimeout)

	s := &http.Server{
		Addr:           fmt.Sprintf(":%d", 8082),
		ReadTimeout:    readTimeout,
		WriteTimeout:   writeTimeout,
		MaxHeaderBytes: 1 << 20, // Max header of 1MB
	}

	go function.Workflow()

	http.HandleFunc("/", function.Handle)

	listenUntilShutdown(s, writeTimeout)
}

Write the function handler. This is the same code used before:


// temporalio-helloworld/handler.go
package function

import (
	"context"
	"fmt"
	"log"
	"os"

	"go.temporal.io/sdk/client"
	"go.temporal.io/sdk/worker"

	"net/http"

	"github.com/temporalio/samples-go/helloworld"
)

const (
	// hostport is the host:port which is used if not passed with options.
	hostport = "temporaltest-frontend-headless.default.svc.cluster.local:7233"
	// namespace is the namespace name which is used if not passed with options.
	namespace = "default"
)

func getEnv(key, fallback string) string {
	if value, ok := os.LookupEnv(key); ok {
		return value
	}
	return fallback
}

func Workflow() {

	c, err := client.NewClient(client.Options{HostPort: getEnv("temporal-dns", hostport)})
	if err != nil {
		log.Fatalln("Unable to create client", err)
	}
	defer c.Close()

	w := worker.New(c, "hello-world", worker.Options{})

	w.RegisterWorkflow(helloworld.Workflow)
	w.RegisterActivity(helloworld.Activity)

	err = w.Run(worker.InterruptCh())
	if err != nil {
		log.Fatalln("Unable to start worker", err)
	}

}

func Handle(rw http.ResponseWriter, r *http.Request) {

	// The client is a heavyweight object that should be created once per process.
	c, err := client.NewClient(client.Options{HostPort: getEnv("temporal-dns", hostport)})
	if err != nil {
		log.Fatalln("Unable to create client", err)
	}
	defer c.Close()

	workflowOptions := client.StartWorkflowOptions{
		ID:        "hello_world_workflowID",
		TaskQueue: "hello-world",
	}

	we, err := c.ExecuteWorkflow(context.Background(), workflowOptions, helloworld.Workflow, "Temporal")
	if err != nil {
		log.Fatalln("Unable to execute workflow", err)
	}

	log.Println("Started workflow", "WorkflowID", we.GetID(), "RunID", we.GetRunID())

	// Synchronously wait for the workflow completion.
	var result string
	err = we.Get(context.Background(), &result)
	if err != nil {
		log.Fatalln("Unable get workflow result", err)
	}
	log.Println("Workflow result:", result)

	rw.Header().Set("Content-Type", "application/json")
	rw.Write([]byte(fmt.Sprintf(`{"success":true, "message": "%s"}`, result)))

}

One command is all we need to build, push and deploy our new function:


 faas-cli up -f temporalio-helloworld.yml --build-arg GO111MODULE=on

If you cant push the image to a remote registry change the openfaas deployment value to ‘image_pull_policy=IfNotPresent’. Then do ‘faas-cli build’ and ‘k3d image import’ instead. This and using private registries on the openfaas docs.

Check the function is depoyed and the workflow registration in the function logs:


 faas-cli list
 # [expected output]
 # Function                      	Invocations    	Replicas
 # figlet                        	1              	1
 # temporalio-helloworld         	0              	1


 faas-cli logs temporalio-helloworld
 # [expected output]
 # 2020-10-26T20:04:47Z 2020/10/26 20:04:47 Started logging stderr from function.
 # 2020-10-26T20:04:47Z 2020/10/26 20:04:47 Started logging stdout from function.
 # 2020-10-26T20:04:47Z Forking - ./handler []
 # 2020-10-26T20:04:47Z 2020/10/26 20:04:47 OperationalMode: http
 # 2020-10-26T20:04:47Z 2020/10/26 20:04:47 Timeouts: read: 10s, write: 10s hard: 10s.
 # 2020-10-26T20:04:47Z 2020/10/26 20:04:47 Listening on port: 8080
 # 2020-10-26T20:04:47Z 2020/10/26 20:04:47 Writing lock-file to: /tmp/.lock
 # 2020-10-26T20:04:47Z 2020/10/26 20:04:47 Metrics listening on port: 8081
 # 2020-10-26T20:04:47Z 2020/10/26 20:04:47 stdout: 2020/10/26 20:04:47 INFO  No logger configured for temporal client. Created default one.
 # 2020-10-26T20:04:48Z 2020/10/26 20:04:48 stdout: 2020/10/26 20:04:48 INFO  Started Worker Namespace default TaskQueue hello-world WorkerID 14@temporalio-helloworld-77d4bc6b99-kt8hj@

Execute the function:


 curl http://gateway.openfaas.local/function/temporalio-helloworld
 # [expected output]
 # {"success":true, "message": "Hello Temporal!"}

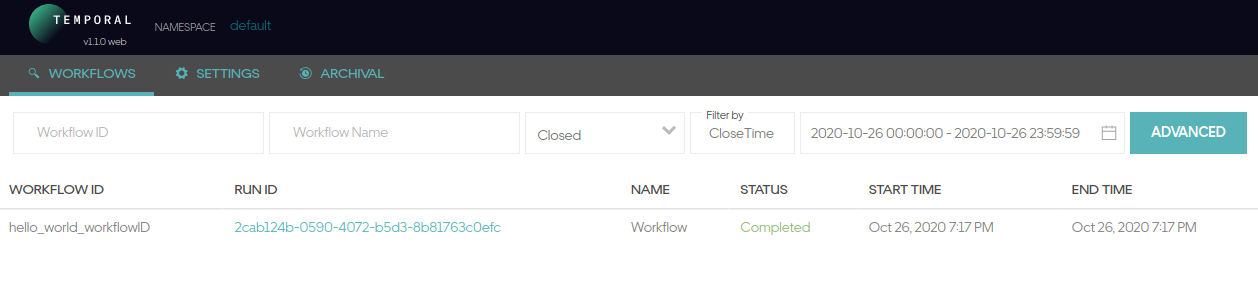

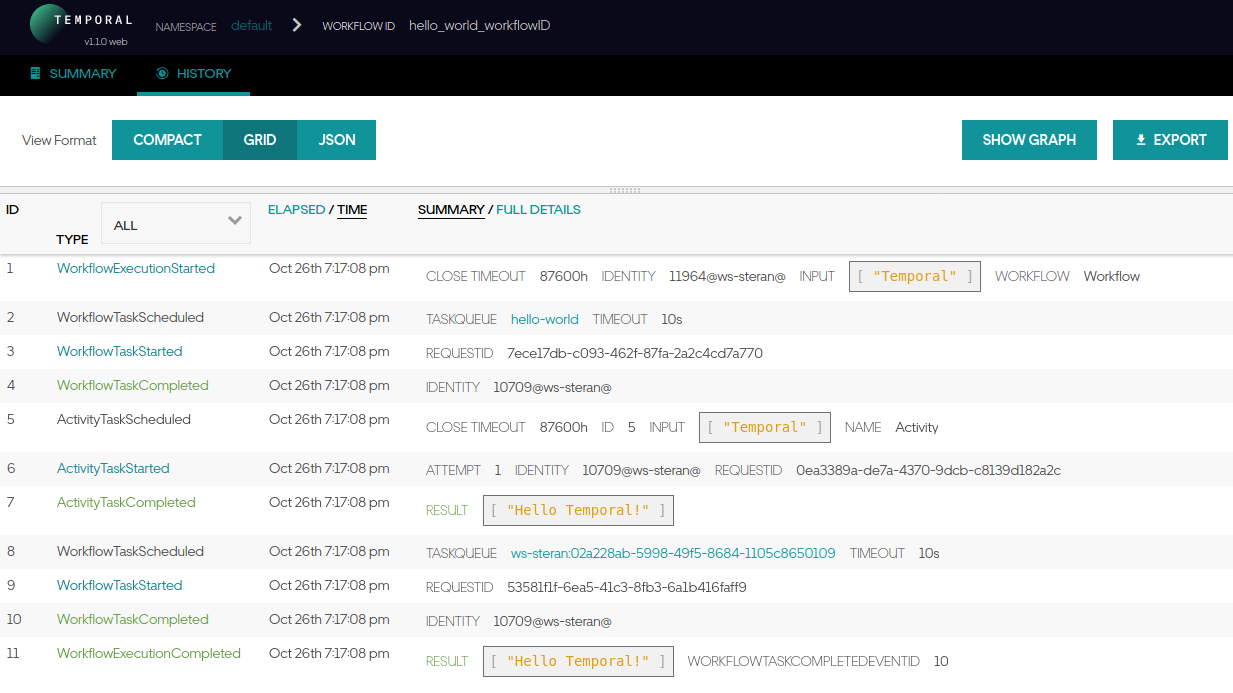

Lot of information is provided in the temporal UI :

My next move is to review the temporal docs for complex use cases like versioning workflows or saga patterns.

Uninstall

To uninstall the lab delete the entries from /etc/hosts and the k3d cluster:


k3d cluster delete openfaas-temporalio
